T-Slot Milling Cutters
Titanium Coated 4-Flute Solid Carbide T-Slot Milling Cutter | High-Precision CNC Grooving End Mill
Boost CNC efficiency with our Titanium Coated 4-Flute T-slot cutters. High-grade tungsten steel for superior hardness and wear resistance. Sizes from φ2.0 to φ16.0 available in stock. Factory direct pricing, free samples, and fast global shipping. Order your high-precision grooving tools now!

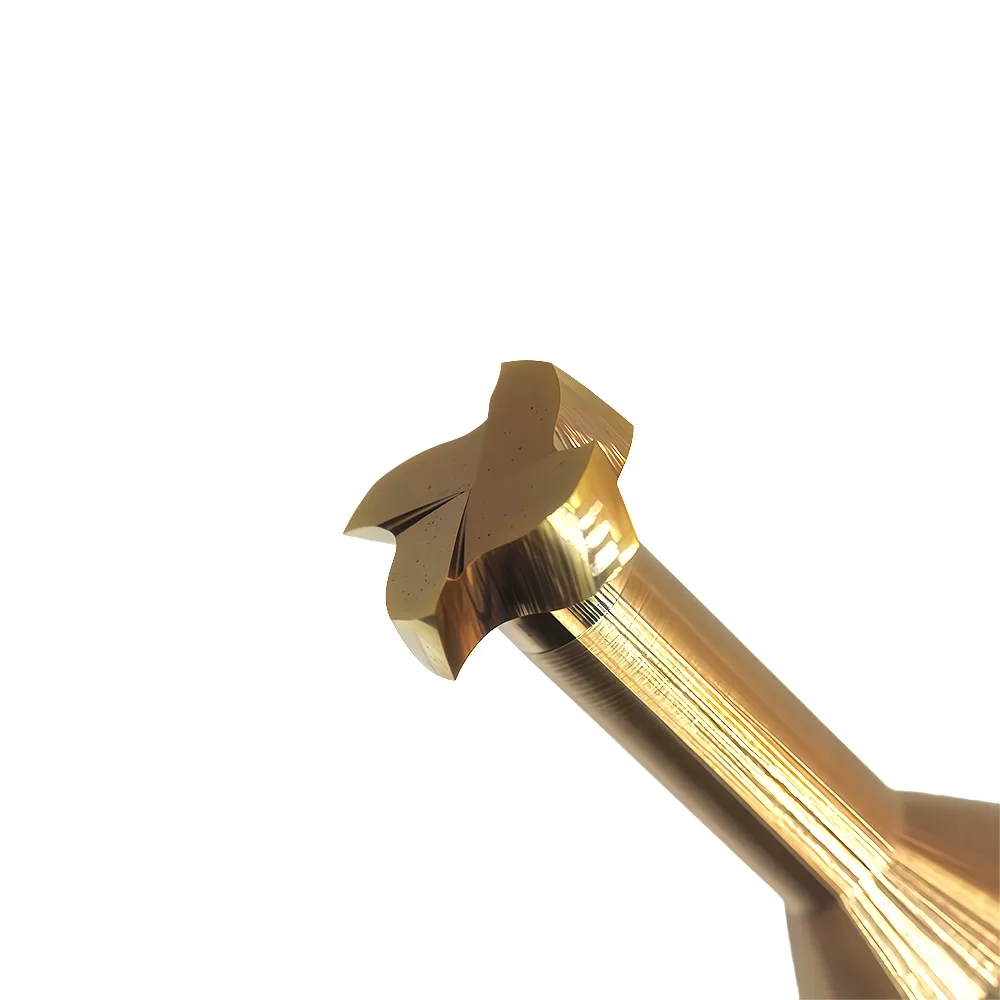

Titanium Coated 4-Flute Solid Carbide T-Slot Milling Cutter
Our Titanium Coated (TiAlN/AlTiN) 4-Flute T-Slot Cutters represent the pinnacle of CNC grooving technology. Engineered from ultra-fine micro-grain tungsten steel, these cutters are designed to handle high-temperature milling and provide exceptional surface finishes on a wide range of materials.
■ Product Function
Specially designed for heavy-duty and high-precision grooving operations:
- T-Slotting: Precision milling of standard T-slots in machine tables and tool holders.
- Internal Grooving: High-efficiency creation of lateral and internal grooves.
- Deep Slotting: The specialized neck design allows for reaching into deep workpieces without shank interference.
- Surface Finishing: The 4-flute geometry ensures a burr-free, mirror-like finish on the slot base and sidewalls.
■ Product Features
- High-Performance Titanium Coating: Increases surface hardness (up to HV3000+) and heat resistance, allowing for faster dry-cutting and extended tool life.
- Premium Tungsten Steel (Solid Carbide): Crafted from 100% virgin micro-grain carbide for maximum rigidity and resistance to breakage.
- High-Stability 4-Flute Design: Provides optimized chip space and enhanced tool strength, reducing vibration during high-speed machining.
- Precision Ground H6 Shank: Ensures minimal runout and a secure fit in high-precision tool holders.
- Versatile Material Compatibility: Ideal for Carbon Steel, Alloy Steel, Pre-hardened Steel (HRC < 55), Cast Iron, and Stainless Steel.
■ Specifications (Massive Stock)
We maintain a comprehensive inventory of over 100+ size combinations to ensure immediate shipping.

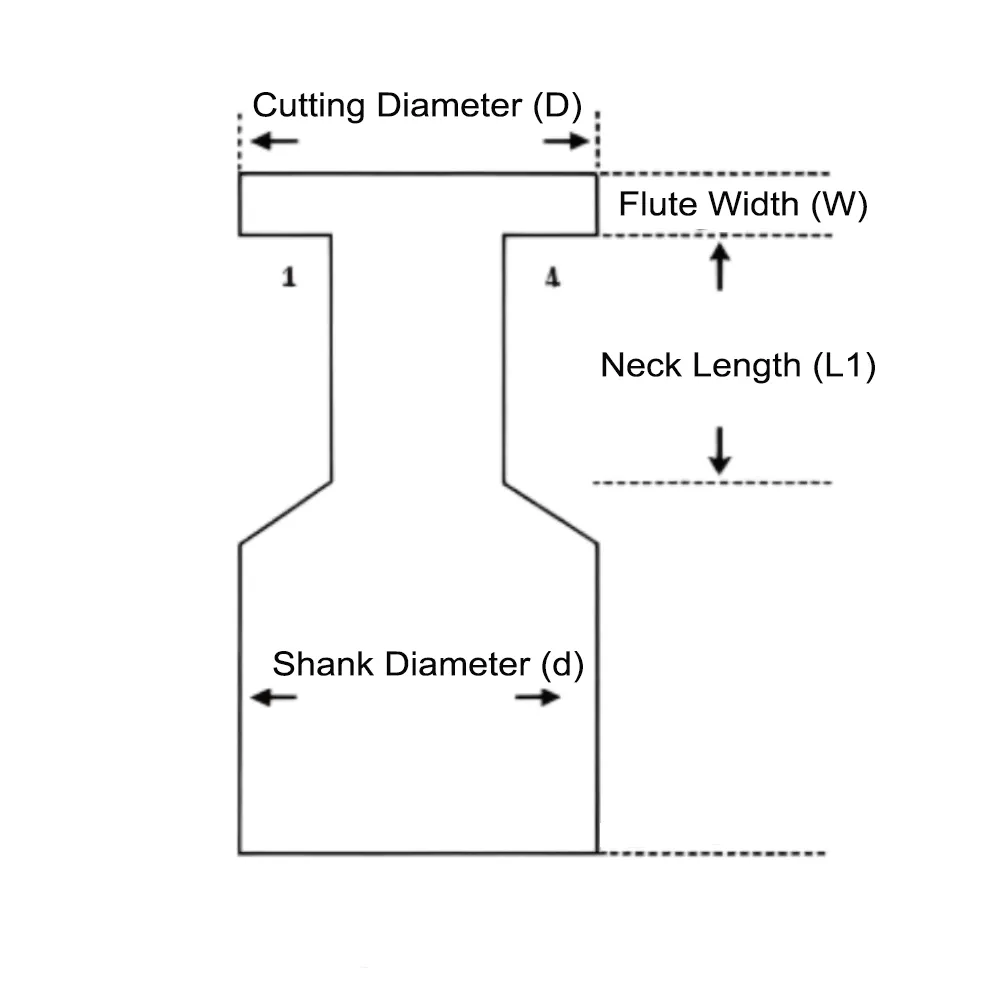

Cutter Dia. (D) | Thickness (W) Range | Neck Dia. | Shank Dia. | Overall Length |
|---|---|---|---|---|
φ2.0 | 0.3mm - 4.0mm | 1.0mm | 4mm | 50mm |
φ3.0 | 0.3mm - 4.0mm | 1.5mm | 4mm | 50mm |
φ4.0 | 0.3mm - 6.0mm | 2.0mm | 4mm | 50mm |
φ5.0 | 0.5mm - 4.0mm | 2.4mm | 6mm | 50mm |
φ6.0 | 0.3mm - 6.0mm | 3.0mm | 6mm | 50mm |
φ8.0 | 0.3mm - 8.0mm | 4.0mm | 8mm | 50mm |
φ10.0 | 0.3mm - 10.0mm | 5.0mm | 10mm | 60mm |
φ12.0 | 0.5mm - 12.0mm | 6.0mm | 12mm | 60mm |
φ14.0 | 1.0mm - 12.0mm | 6.0mm | 14mm | 75mm |
φ16.0 | 1.0mm - 12.0mm | 7.0mm | 16mm | 75mm |
Note: Thickness increments as fine as 0.1mm are available for high-precision requirements.
■ RPM/Feed (转速/进给) Reference Table
Parameters are optimized for Titanium Coated cutters. Adjust based on machine stability.
Workpiece Material | Cutting Speed (Vc) | Feed per Tooth (fz) | Hardness (HRC) |
|---|---|---|---|
Carbon Steel (S45C, S50C) | 100 - 150 m/min | 0.03 - 0.08 mm/t | < 25 HRC |
Alloy Steel (SCM, NAK80) | 80 - 130 m/min | 0.02 - 0.06 mm/t | 25 - 45 HRC |
Cast Iron (FC, FCD) | 70 - 110 m/min | 0.04 - 0.09 mm/t | - |
Stainless Steel (304, 316) | 50 - 90 m/min | 0.02 - 0.04 mm/t | - |
■ Promotion Policy
- Free Sample: Free samples can be provided if clients agree to pay for the shipping cost.
- First Order Coupon: New clients can enjoy a USD 50 discount coupon for their first order (if the total order amount exceeds USD 500).
- Big Order Discount: Clients can enjoy 2%~5% discount if the total order amount is more than USD 5,000.
■ Clients Benefits
- Maximized ROI: The Titanium coating extends tool life by 30-50% compared to uncoated tools, reducing your cost per part.
- Factory-Direct Pricing: Eliminate the middleman and purchase directly from our manufacturing facility in China.
- Reduced Downtime: Our massive stock ensures you get the tools you need within days, not weeks.
- Technical Support: Access to our expert engineering team for cutting parameter optimization.
■ FAQ
Q1: What is the benefit of Titanium Coating on a T-slot cutter?
A: Titanium coating (TiAlN/AlTiN) provides a thermal barrier, allowing the tool to maintain hardness at higher temperatures, which is crucial for the friction-heavy environment of T-slot milling.
Q2: Can I request a custom neck length or thickness?
A: Absolutely. We offer full OEM/ODM services. Custom sizes can typically be manufactured and shipped within 7-10 working days.
Q3: Which cooling method is best for these coated cutters?
A: For steel and alloys, oil mist or high-pressure air blow is recommended. For stainless steel, high-quality water-soluble coolant will provide the best results.
**Q4: How do I apply for the 500 threshold is met.
