Chamfer End Mills
60/90/120 Degree Solid Carbide Chamfer Cutter Uncoated Tungsten Steel End Mill for CNC Deburring
High-performance uncoated solid carbide chamfer cutters for precision deburring and edge chamfering. Available in 60°, 90°, and 120° angles. Made from premium tungsten steel for CNC machining of aluminum, copper, and non-ferrous metals. Factory direct price with fast shipping.

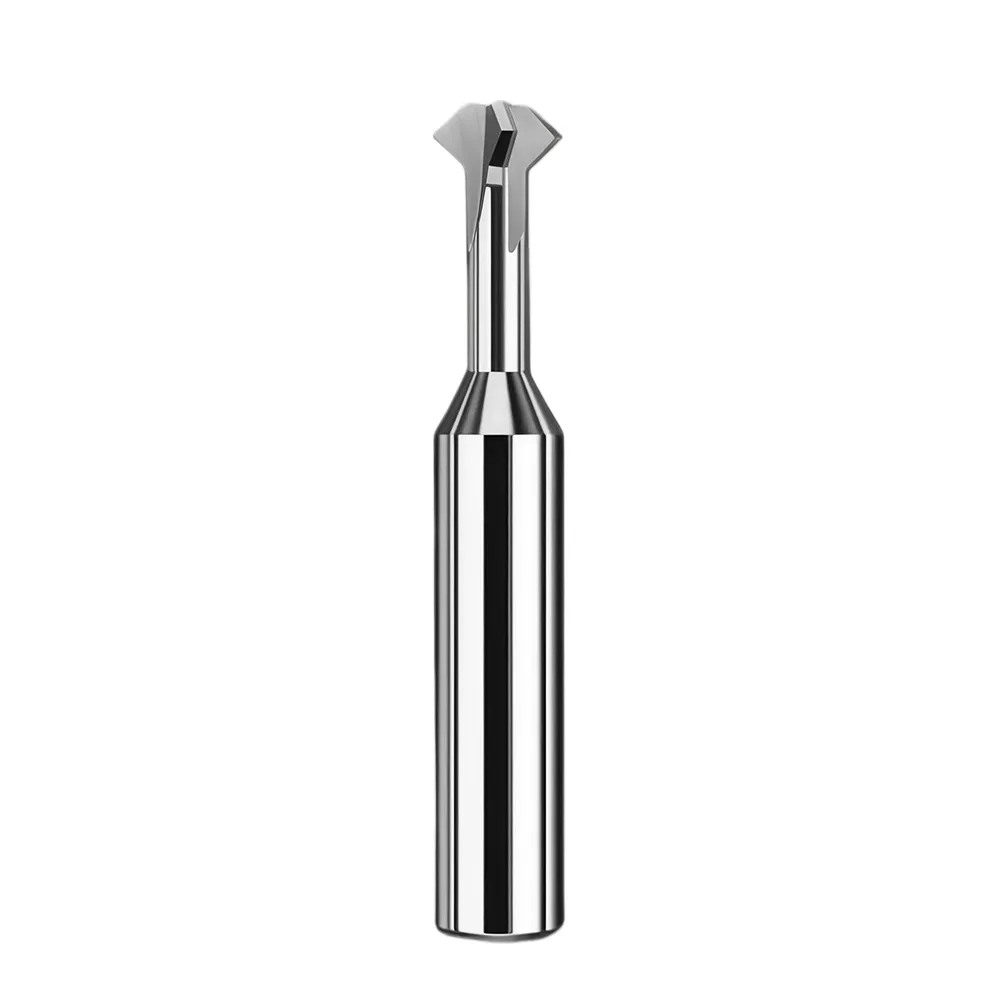

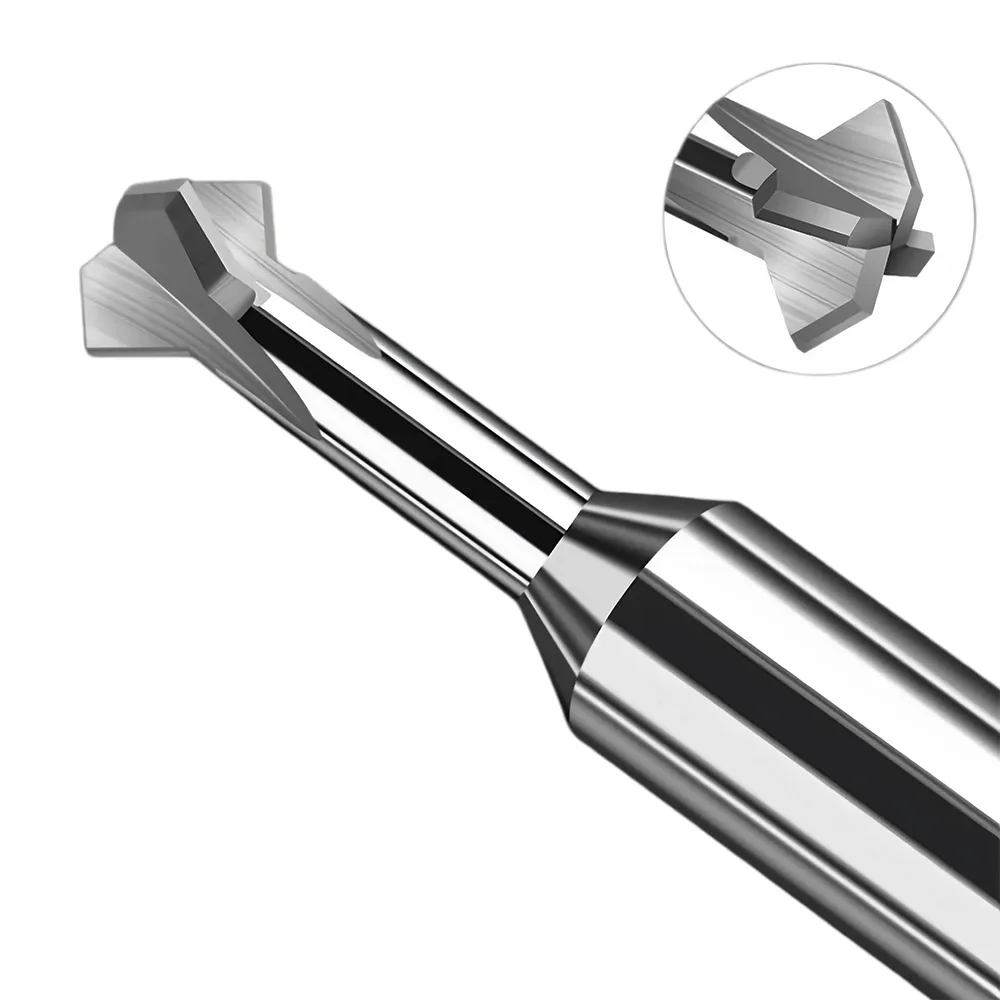

Uncoated Tungsten Carbide Chamfer Cutter (60° / 90° / 120°)
Our premium Uncoated Tungsten Carbide Chamfer Cutter is designed for high-precision CNC machining. Made from micro-grain solid carbide, these tools provide exceptional sharpness and wear resistance for deburring, edge chamfering, and V-grooving applications. Being uncoated makes them the ideal choice for non-ferrous metals like aluminum and copper, as well as general-purpose milling where edge sharpness is critical.
🛠 Product Function
- Edge Chamfering: Creating precise beveled edges on workpieces.
- Deburring: Efficiently removing burrs after primary milling or drilling.
- V-Grooving: Precise V-shaped slotting and engraving.
- Spotting/Centering: Can be used for accurate hole positioning.
✨ Product Features
- Solid Tungsten Carbide: High hardness and heat resistance for extended tool life.
- Ultra-Sharp Cutting Edge: Uncoated design ensures the sharpest possible edge for a smooth finish.
- Versatile Angles: Available in 60°, 90°, and 120° to meet various industrial standards.
- High Rigidity: Optimized shank and clearance diameter design to minimize vibration and tool breakage.
- Wide Application: Excellent performance in aluminum, copper, plastic, and low-carbon steels.
📏 Specifications
Angle | Cutter Dia (D) | Cutting Length (L1) | Clearance Dia (d1) | Flute + Clearance (L2) | Shank Dia (d) | Overall Length (L) |
|---|---|---|---|---|---|---|
60° | 2 - 12mm | 0.64 - 3.81mm | 0.9 - 5.4mm | 2.5 - 11mm | 4 - 12mm | 50 - 75mm |
90° | 2 - 12mm | 1.1 - 6.6mm | 0.9 - 5.4mm | 3 - 14mm | 4 - 12mm | 50 - 75mm |
120° | 2 - 12mm | 1.9 - 11.43mm | 0.9 - 5.4mm | 4 - 19mm | 4 - 12mm | 50 - 75mm |
(Detailed size chart available below)
Cutter Dia | Angle | Cutting Length | Clearance Dia | Flute + Clearance | Shank Dia | Overall Length |
|---|---|---|---|---|---|---|
2 | 60° | 0.64 | 0.9 | 2.5 | 4 | 50 |
4 | 60° | 1.24 | 1.85 | 4 | 4 | 50 |
6 | 60° | 1.9 | 2.7 | 6 | 6 | 50 |
10 | 60° | 3.18 | 4.5 | 10 | 10 | 75 |
2 | 90° | 1.1 | 0.9 | 3 | 4 | 50 |
6 | 90° | 3.3 | 2.7 | 7 | 6 | 50 |
10 | 90° | 5.5 | 4.5 | 12 | 10 | 75 |
2 | 120° | 1.9 | 0.9 | 4 | 4 | 50 |
6 | 120° | 5.71 | 2.7 | 10 | 6 | 50 |
10 | 120° | 9.53 | 4.5 | 16 | 10 | 75 |
(Note: Full range of sizes from 2mm to 12mm in stock)
🚀 RPM/Feed
Note: These parameters are for reference. Adjust based on your machine rigidity and specific material grade.
Material | Cutting Speed (Vc) | Feed per Tooth (fz) |
|---|---|---|
Aluminum/Aluminum Alloy | 150 - 300 m/min | 0.03 - 0.10 mm/t |
Copper/Brass | 100 - 200 m/min | 0.02 - 0.08 mm/t |
Plastic/PVC | 120 - 250 m/min | 0.05 - 0.15 mm/t |
Low Carbon Steel | 80 - 120 m/min | 0.02 - 0.06 mm/t |
Formula:
- RPM = (Vc * 1000) / (π * Cutter Diameter)
- Feed Rate = RPM * fz * Number of Flutes
🎁 Promotion Policy
- Free Sample: Free samples can be provided if clients agree to pay for the shipping cost.
- First Order Coupon: New clients can enjoy a USD 50 discount coupon for their first order (minimum order amount USD 500).
- Big Order Discount: Enjoy a 2% - 5% discount for bulk orders over USD 5,000.
💎 Client Benefits
- Direct Factory Pricing: Cut out the middleman and save costs.
- Stable Quality Control: Every batch is inspected to ensure high precision.
- Fast Lead Time: Large stock available for standard sizes (2mm-12mm).
- Technical Support: Our engineers can help optimize your cutting parameters.
❓ FAQ
Q: Why choose uncoated chamfer cutters?
A: Uncoated cutters provide a sharper edge, which is essential for preventing "built-up edge" when machining soft materials like aluminum and plastics.
Q: Can these be used on stainless steel?
A: While they can work, we recommend our AlTiN or TiAlN coated series for better tool life on harder materials like stainless steel.
Q: Do you offer custom angles (e.g., 45° or 100°)?
A: Yes, we offer OEM/ODM services. Please contact our sales team with your drawings.
