T-Slot Milling Cutters
4 Flutes Solid Carbide T-Slot Milling Cutter | CNC Grooving End Mill for Metal Working
High-precision 4 flutes tungsten steel T-slot cutters for CNC milling. Features excellent chip evacuation and wear resistance. Sizes from φ2.0 to φ16.0 in stock. Factory direct price, free samples available. Optimize your grooving process today!

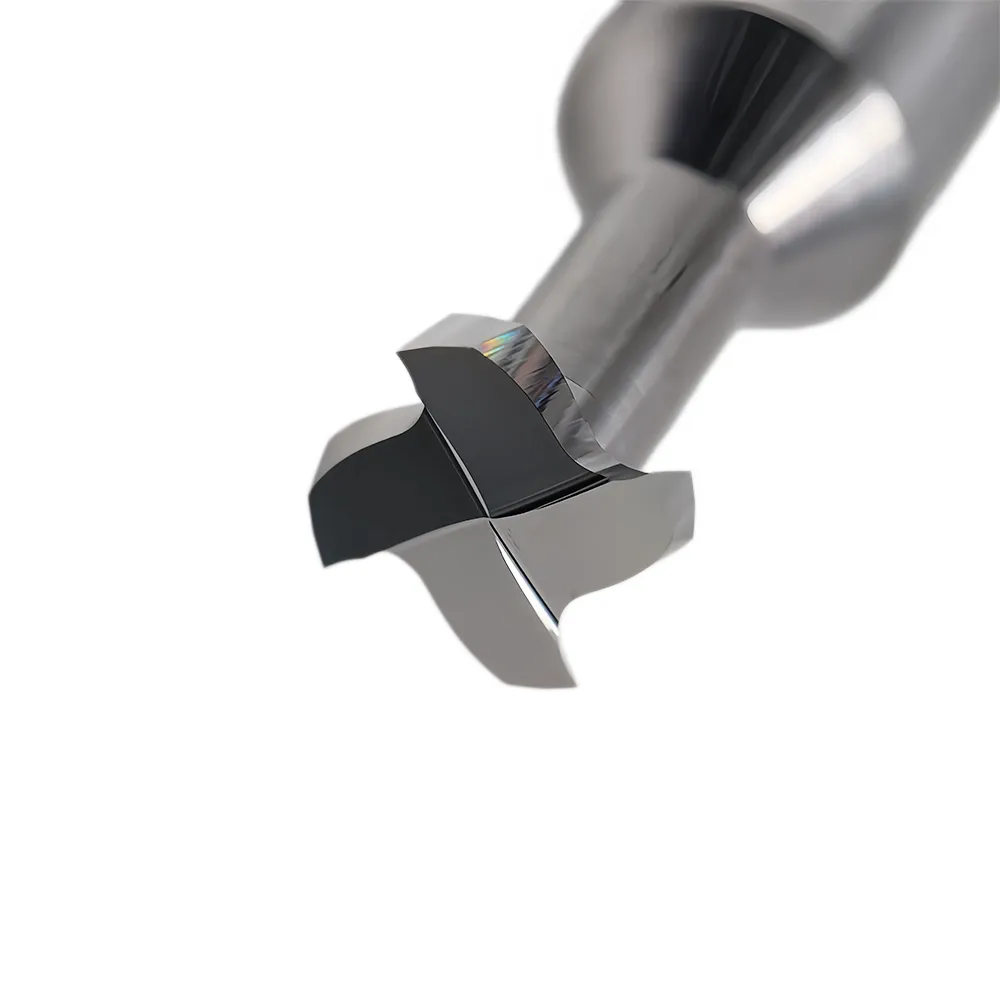

4 Flutes Solid Carbide T-Slot Milling Cutter - High Precision CNC Tooling
Elevate your machining precision with our premium 4-Flute Tungsten Steel T-Slot Cutters. Specifically designed for milling T-slots, lateral grooves, and complex slotting operations, these tools are crafted from high-grade micro-grain carbide to ensure maximum tool life and superior surface finish.
■ Product Function
This T-slot cutter is engineered for:
- T-Slotting: Creating standard and custom T-slots in machine tables and fixtures.
- Side Grooving: High-efficiency side milling and trenching.
- Precision Undercutting: Ideal for complex components requiring internal clearance.
- Material Compatibility: Excellent for Carbon Steel, Alloy Steel, Cast Iron, and Non-ferrous metals.
■ Product Features
- Premium Material: Made from 100% virgin tungsten steel (solid carbide) for high hardness and thermal stability.
- 4-Flute Design: Provides a perfect balance between tool strength and chip evacuation space, ensuring a smoother cut and reduced vibration.
- High Precision: Manufactured with H6 shank tolerance for minimal runout and stable high-speed rotation.
- Long Tool Life: Advanced coating (Optional) and micro-grain substrate resist wear even in high-heat applications.
- Full Range of Sizes: Large inventory available from diameter 2.0mm to 16.0mm with various thickness options.
■ Specifications (In Stock)
Below is a summary of our standard specifications. We offer a wide range of thicknesses (from 0.3mm to 12mm) to meet your specific needs.

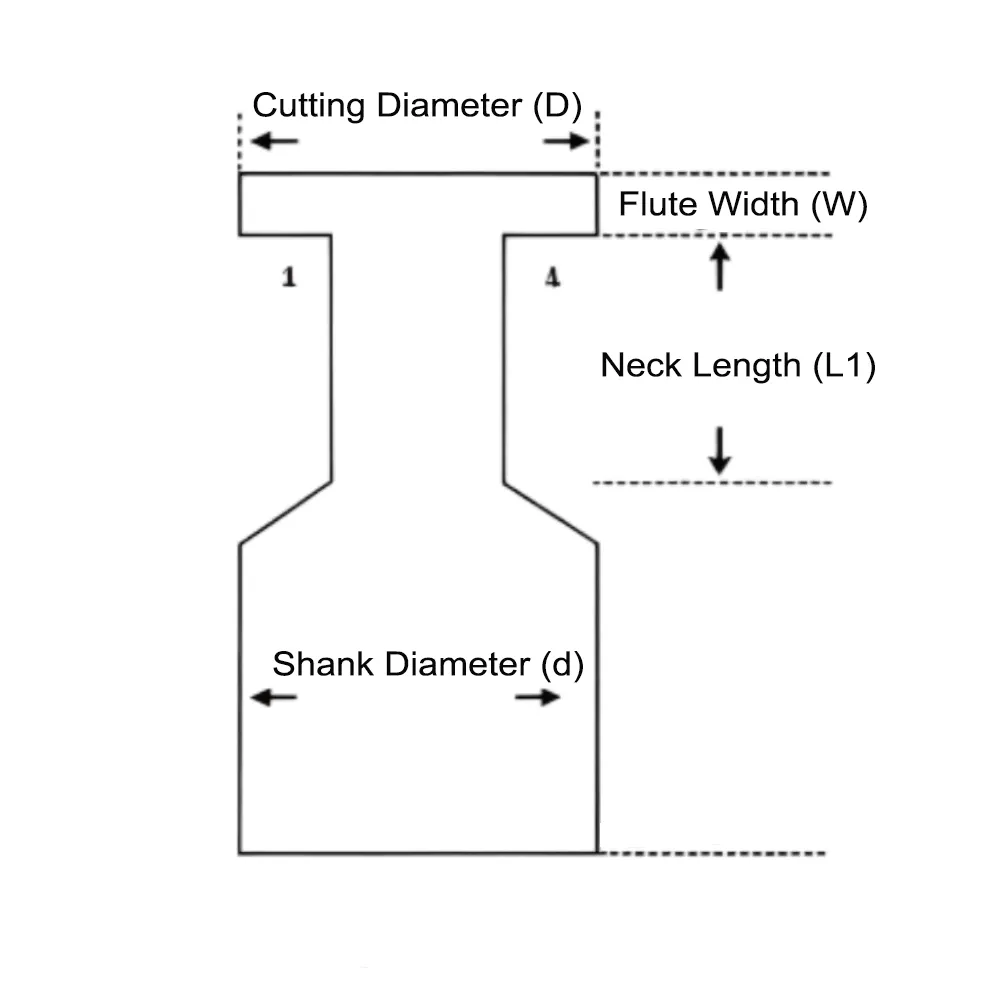

Cutter Dia. (D) | Thickness (W) Range | Neck Dia. | Shank Dia. | Overall Length |
|---|---|---|---|---|
φ2.0 | 0.3mm - 4.0mm | 1.0mm | 4mm | 50mm |
φ3.0 | 0.3mm - 4.0mm | 1.5mm | 4mm | 50mm |
φ4.0 | 0.3mm - 6.0mm | 2.0mm | 4mm | 50mm |
φ5.0 | 0.5mm - 4.0mm | 2.4mm | 6mm | 50mm |
φ6.0 | 0.3mm - 6.0mm | 3.0mm | 6mm | 50mm |
φ8.0 | 0.3mm - 8.0mm | 4.0mm | 8mm | 50mm |
φ10.0 | 0.3mm - 10.0mm | 5.0mm | 10mm | 60mm |
φ12.0 | 0.5mm - 12.0mm | 6.0mm | 12mm | 60mm |
φ14.0 | 1.0mm - 12.0mm | 6.0mm | 14mm | 75mm |
φ16.0 | 1.0mm - 12.0mm | 7.0mm | 16mm | 75mm |
Note: For detailed thickness increments (0.1mm steps available for small sizes), please contact our sales team.
■ RPM/Feed Reference Table
Disclaimer: These parameters are for reference. Adjust based on machine rigidity and specific material hardness.
Workpiece Material | Cutting Speed (VC) | Feed per Tooth (fz) |
|---|---|---|
Carbon Steel / Alloy Steel | 80 - 120 m/min | 0.02 - 0.06 mm/t |
Cast Iron | 60 - 100 m/min | 0.03 - 0.08 mm/t |
Stainless Steel | 40 - 70 m/min | 0.015 - 0.04 mm/t |
Aluminum Alloy | 150 - 300 m/min | 0.04 - 0.10 mm/t |
■ Promotion Policy
- Free Sample: Free samples can be provided if clients agree to pay for the shipping cost.
- First Order Coupon: New clients can enjoy a USD 50 discount coupon for their first order (if the total order amount exceeds USD 500).
- Big Order Discount: Clients can enjoy 2%~5% discount if the total order amount is more than USD 5,000.
■ Clients Benefits
- Cost Reduction: Factory-direct pricing significantly lowers your tooling procurement costs.
- High Efficiency: 4-flute design allows for faster feed rates and shorter cycle times.
- Consistency: CNC precision grinding ensures every tool performs identically to the last.
- Fast Delivery: Massive stock of standard sizes ensures same-day or next-day shipping.
■ FAQ
Q1: Can you provide custom thicknesses not listed in the table?
A: Yes! As a manufacturer, we can customize the cutter diameter, thickness, and neck length to your specific drawings.
Q2: What is the recommended cooling method?
A: We recommend using air blow or oil mist for steel, and water-soluble coolant for aluminum for better surface finish.
Q3: Is there a coating on these T-slot cutters?
A: Our standard stock is uncoated for maximum sharpness, but we offer AlTiN, TiAlN, or DLC coatings upon request to enhance tool life in hard materials.
Q4: How do I claim the USD 50 first-order coupon?
A: Simply mention the "First Order Coupon" to our sales representative when your order reaches the USD 500 threshold.
