ISO Metric Thread Mills
Premium 60° Single Point Tungsten Carbide Thread Mills for Steel & Stainless Steel - TiAICN Coated
Shop premium 60° single point thread mills. Made with Walter (Germany) tungsten carbide & TiAICN coating. Ideal for steel, stainless, & titanium. High precision & long tool life. Order now!

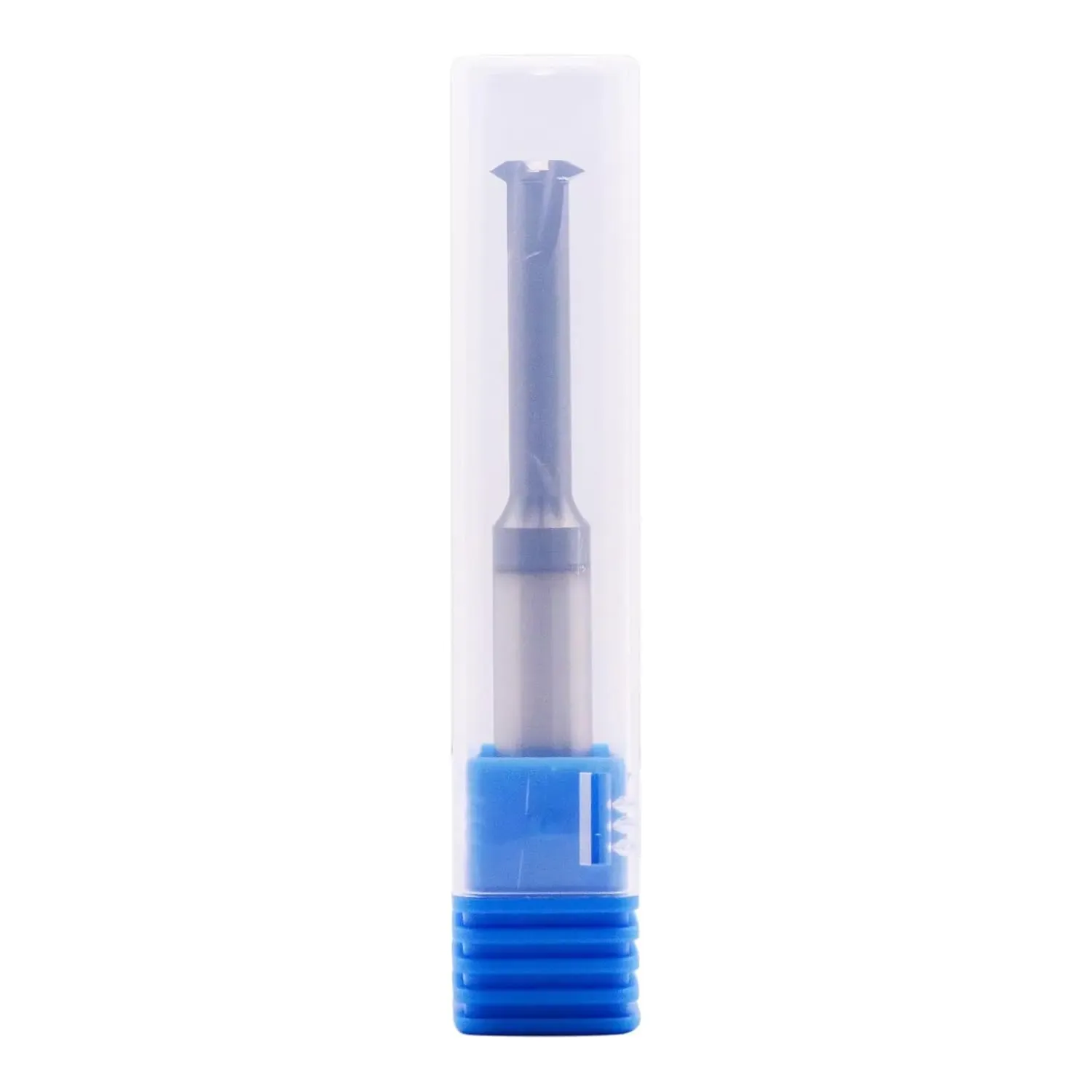

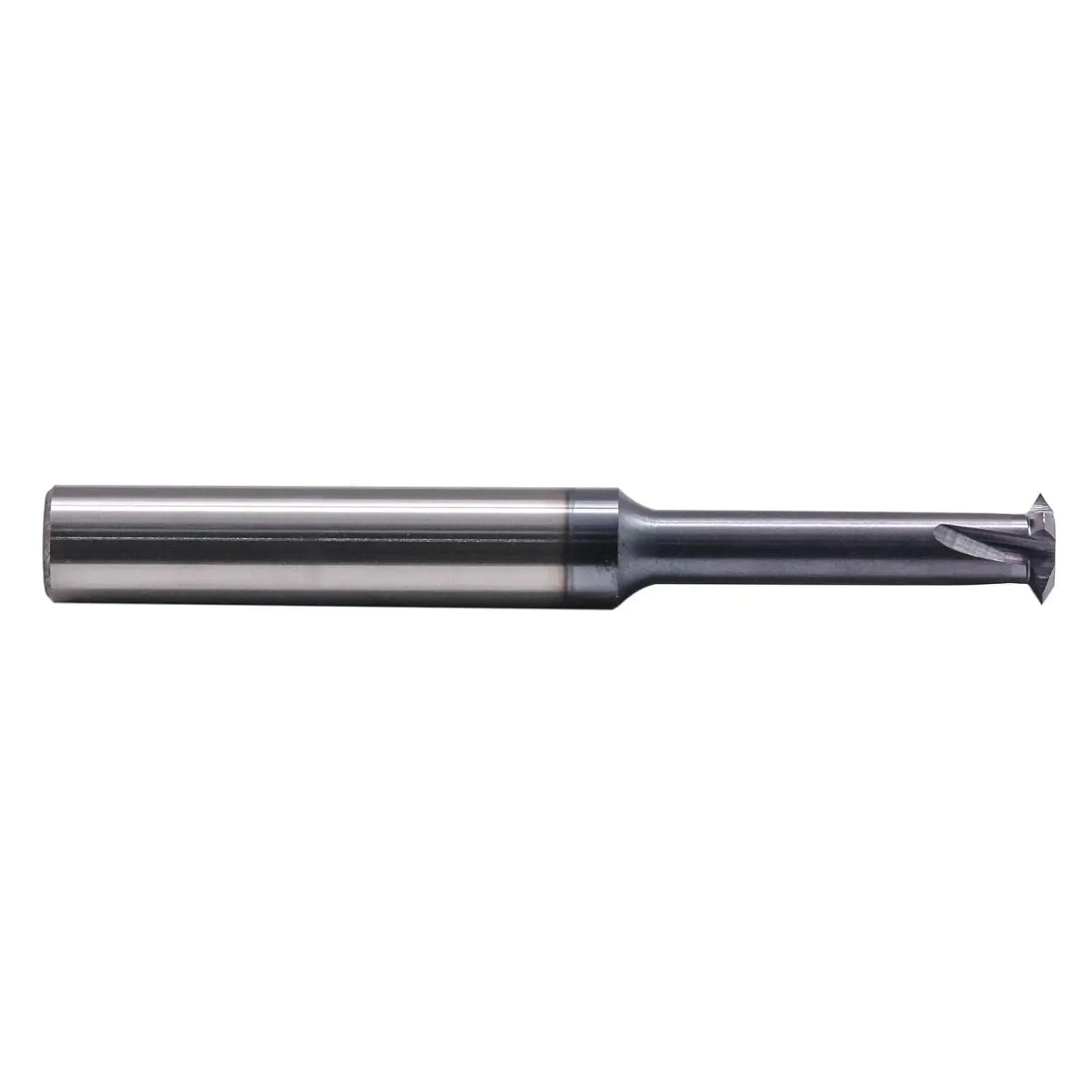

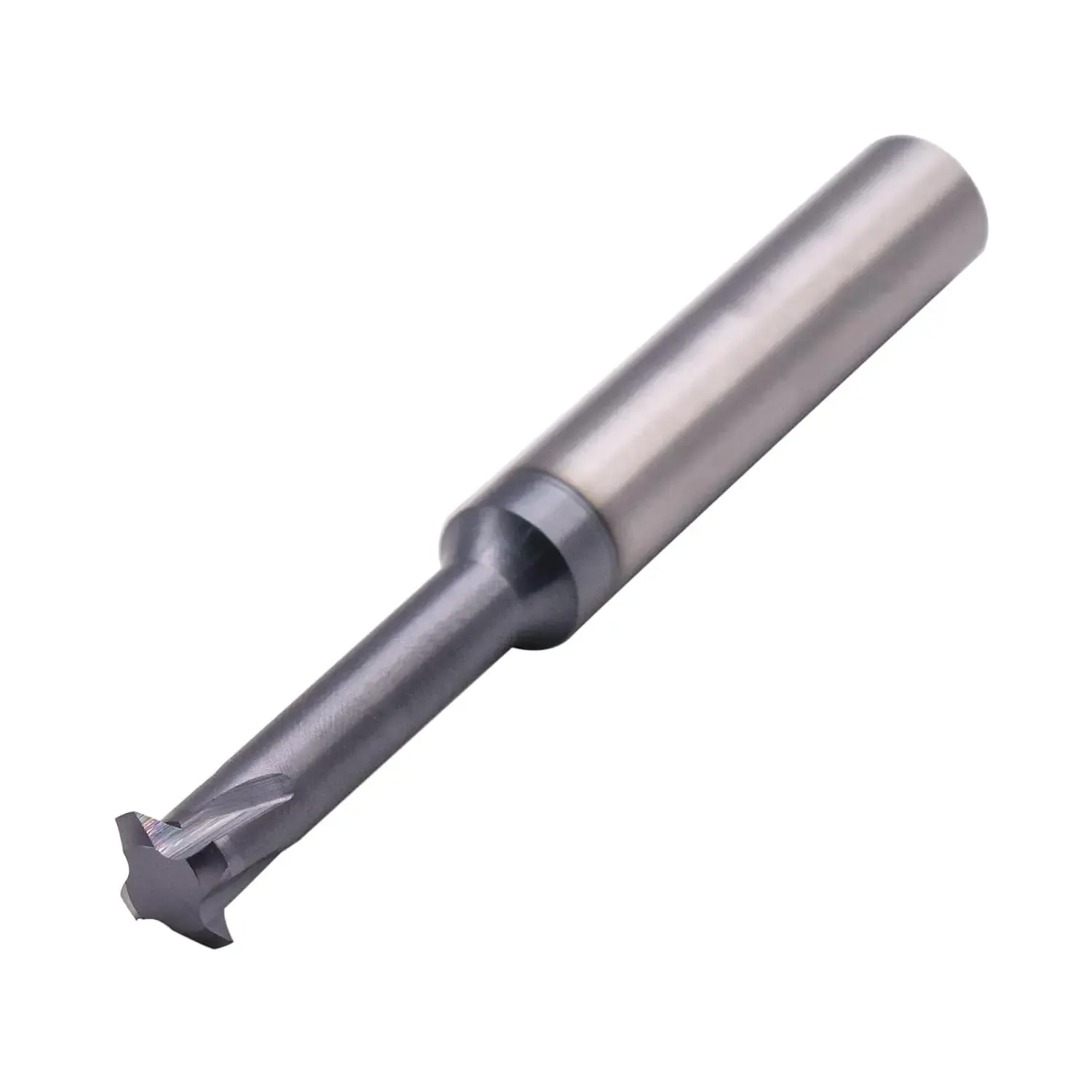

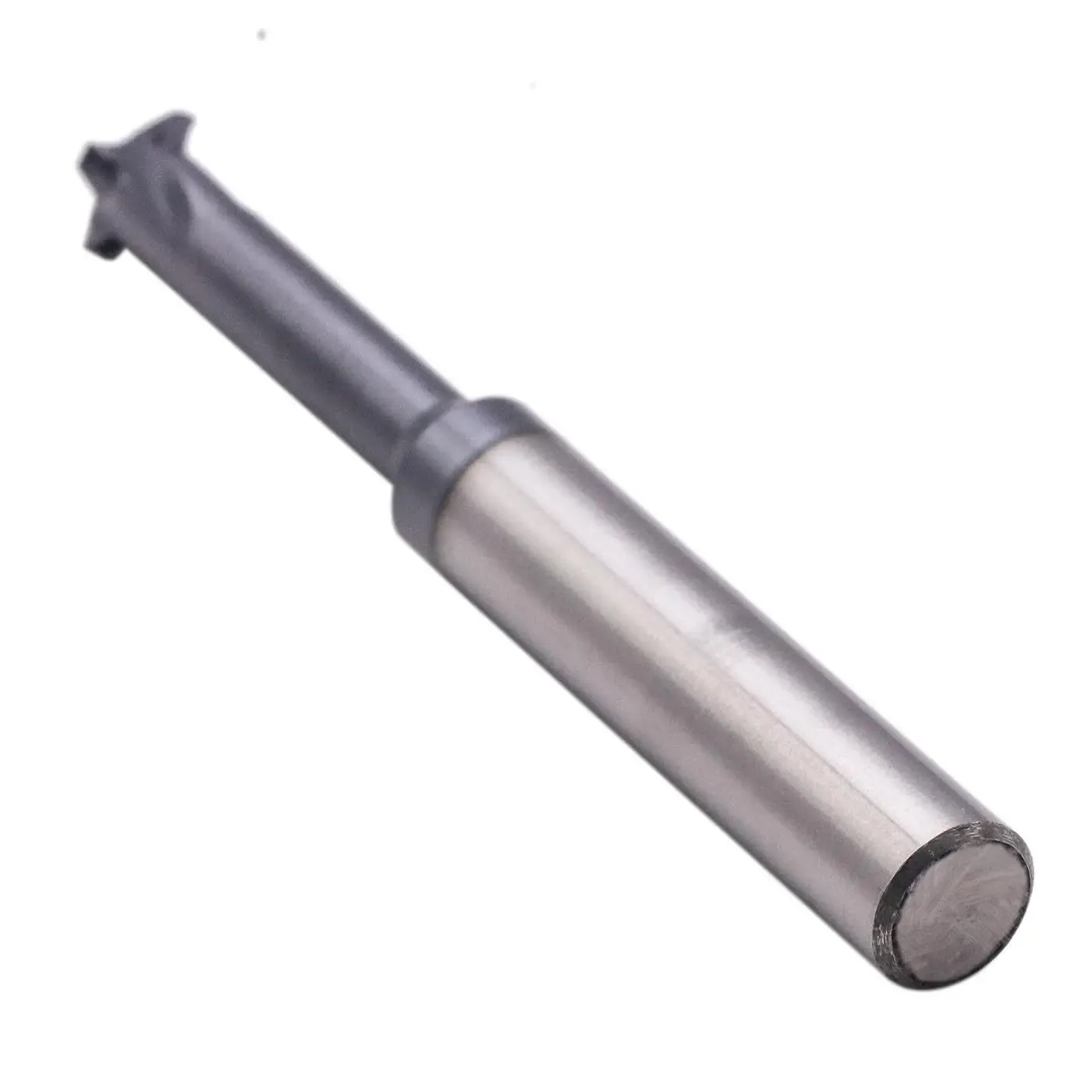

60° Single Point Tungsten Carbide Thread Mills for Steel (TiAICN Coated)
Unlock precision and versatility in your threading operations with our premium 60° Single Point Thread Mills. Specifically engineered for high-performance machining in steel, stainless steel, and hardened alloys, these tools are the ultimate choice for CNC professionals seeking durability and superior surface finish.
Product Function
Our single point thread mills are designed for universal threading applications. Unlike multi-flute thread mills, the single-profile design allows:
- Pitch Versatility: Cut various thread pitches with a single tool.
- Reduced Tool Pressure: Ideal for long-reach applications or unstable setups.
- High Precision: Perfect for machining internal and external 60° ISO metric threads with zero taper and exceptional chip clearance.
Product Features
- Premium German Substrate: Manufactured using ultra-fine grain tungsten carbide from Walter (Germany), ensuring maximum toughness and wear resistance.
- Advanced TiAICN Coating: The specialized Titanium Aluminum Carbonitride coating provides excellent thermal stability and hardness (up to 3000 HV), allowing for higher cutting speeds and extended tool life in dry or wet machining.
- Exceptional Versatility: Optimized for a wide range of materials:
- Carbon Steel & Alloy Steel
- Stainless Steel (304, 316)
- Cast Iron
- Titanium Alloys & Nickel Alloys
- Mold Steel (up to HRC 55)
- High Rigidity: Optimized shank diameters (D4-D16) designed to minimize vibration and deflection.
Specifications
Model (DPitchD1L1FlutesShankOAL) | Shank Dia. (D) | Application Range (Metric) | Flutes |
|---|---|---|---|
M0.80.2D0.552.8L3F*D4 | D4 | Micro Threads | 3F |
M3.00.5D2.4L93FD450L | D4 | M3 and above | 3F |
M6.01.0D4.8L193FD650L | D6 | M6 and above | 3F |
M10.01.5D8L323FD860L | D8 | M10 and above | 3F |
M12.01.75D9.4L384FD1075L | D10 | M12 and above | 4F |
M20.02.5D16L504FD1690L | D16 | M20 and above | 4F |
M30.03.5D1650L5FD1690L | D16 | M30 and above | 5F |
(Full range of sizes from M0.8 to M30 available in stock) |
Recommended Cutting Parameters (RPM/Feed)
The following are reference values for TiAICN coated tools. Adjust based on machine rigidity and coolant use.
Material Type | Cutting Speed (Vc: m/min) | Feed per Tooth (fz: mm/t) |
|---|---|---|
Carbon Steel (Soft) | 120 - 180 | 0.02 - 0.06 |
Alloy Steel / Mold Steel | 80 - 120 | 0.02 - 0.05 |
Stainless Steel (304/316) | 60 - 100 | 0.01 - 0.04 |
Cast Iron | 100 - 150 | 0.03 - 0.07 |
Hardened Steel (< HRC 50) | 40 - 70 | 0.01 - 0.03 |
Calculation Formulas:
- RPM (n): (Vc × 1000) / (D1 × 3.14)
- Feed Rate (Vf): n × fz × number of flutes
Promotion Policy
- Bulk Discounts: Tiered pricing for orders over 10, 50, and 100 pieces.
- OEM/ODM Service: Custom lengths and coatings available upon request.
- Sample Program: Contact our sales team for discounted trial samples for first-time industrial clients.
- Fast Shipping: Global logistics support with 24-hour dispatch for in-stock items.
Client Benefits
- Lower Inventory Costs: One single point tool can cut multiple pitches of the same thread angle (60°), reducing the need for multiple fixed-pitch tools.
- Reduced Downtime: The premium Walter substrate combined with TiAICN coating means fewer tool changes and consistent performance.
- Superior Thread Quality: Achieve cleaner threads and better dimensional accuracy compared to traditional tapping, especially in difficult-to-machine materials.
- Process Safety: Easier chip evacuation prevents tool breakage inside expensive workpieces.
FAQ
Q: Can I use this tool for different thread sizes?
A: Yes! As a single point mill, as long as the thread angle is 60° (Metric/UNC/UNF), you can use it for various diameters larger than the tool's cutting diameter.
Q: Why choose TiAICN coating over TiAlN?
A: TiAICN offers a lower coefficient of friction and higher hardness, making it superior for stainless steel and gummy materials where chip sticking is a concern.
Q: Is this tool suitable for high-speed machining?
A: Absolutely. Thanks to the German-made Walter substrate, our tools maintain edge sharpness even at high RPMs.
Q: Do you provide technical support for G-code programming?
A: Yes, our engineering team can provide thread milling macro programs or parameter advice for your specific CNC controller.
