Ball Nose End Mills for Aluminum
2 Flute Carbide Lollipop Ball End Mill for Aluminum | Undercutting & Deburring CNC Tool
High-performance 2 Flute Carbide Lollipop Ball End Mills specifically designed for aluminum. Ideal for undercutting, 3D profiling, and deburring in hard-to-reach areas. Factory direct price, R0.5-R6 in stock. Get a free sample today!
Carbide Lollipop Ball End Mill - 2 Flute For Aluminum

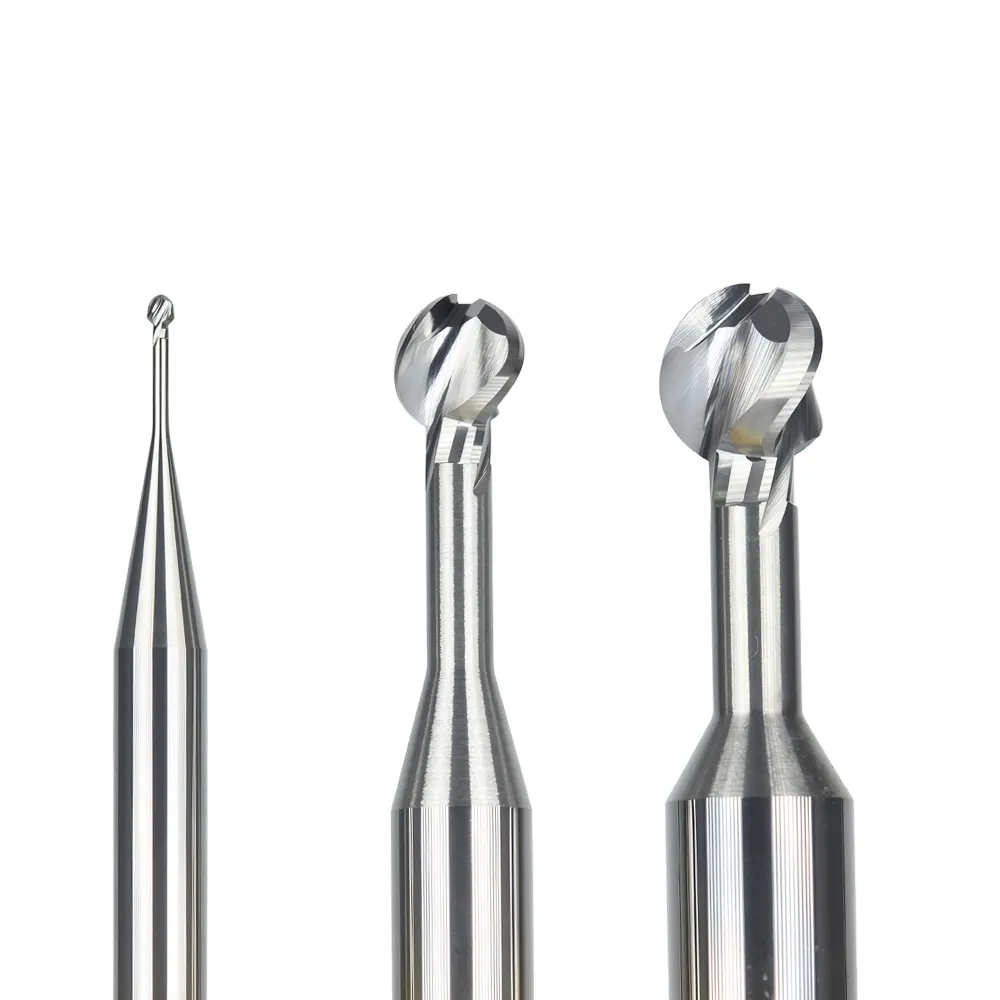

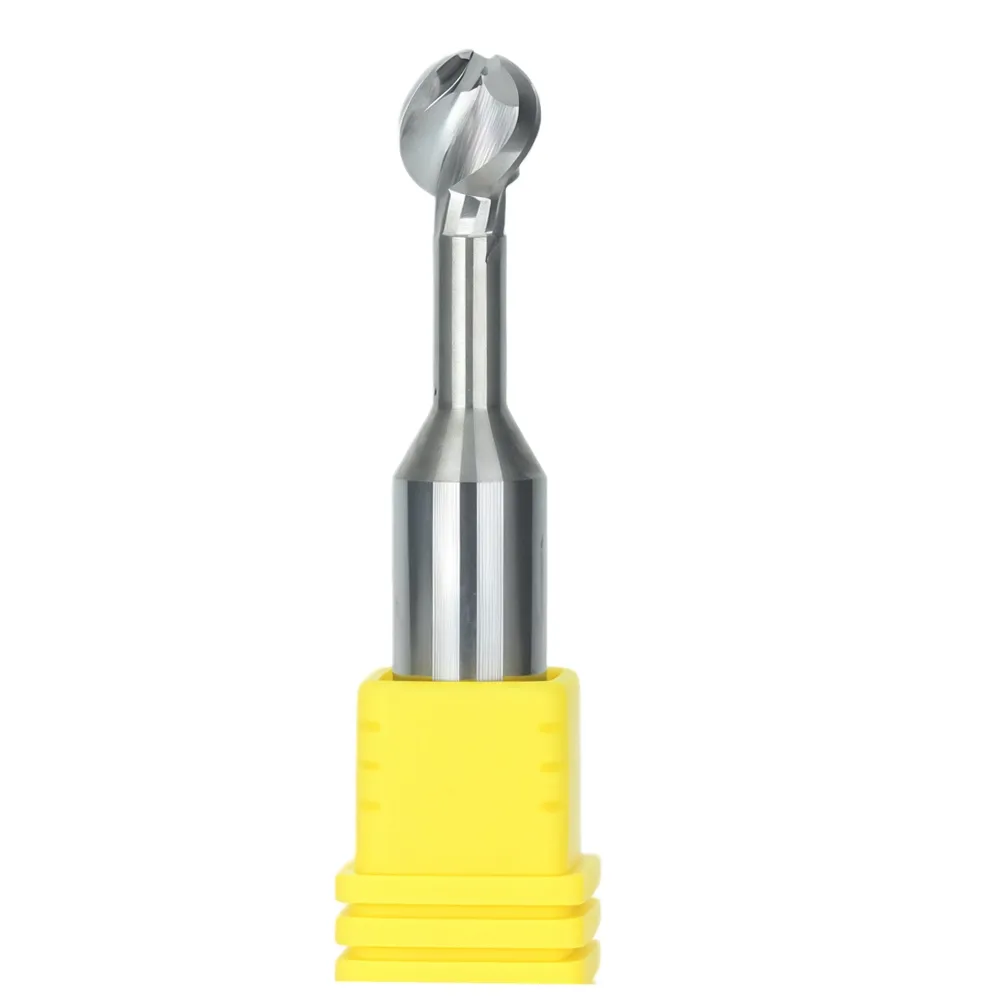

Maximize your machining flexibility with our 2 Flute Carbide Lollipop Ball End Mills. Specifically engineered for non-ferrous materials like aluminum, these tools feature a spherical ball head with a slim neck design, making them the ultimate solution for complex undercutting, deburring, and multi-axis 3D profiling.
Product Function
- Undercutting: Easily reach the underside of workpieces or recessed features.
- Deburring: Precision edge finishing on complex geometries and cross-drilled holes.
- 3D Profiling: Smooth contouring on 5-axis CNC machines for intricate aluminum parts.
- Clearance Milling: The long neck provides excellent clearance for deep-cavity machining.
Product Features
- Premium Material: Made from high-micro grain tungsten steel for superior hardness and wear resistance.
- Large Chip Flute: 2-flute design optimized for aluminum to prevent chip welding and ensure smooth evacuation.
- High Precision: Tolerance controlled within ±0.01mm for consistent spherical accuracy.
- Vibration Reduction: Optimized neck geometry reduces chatter during high-speed machining.
- Polished Cutting Edge: Mirror-polished flutes reduce friction and improve surface finish quality.
Specifications
Available in a wide range of sizes to suit your specific CNC needs:

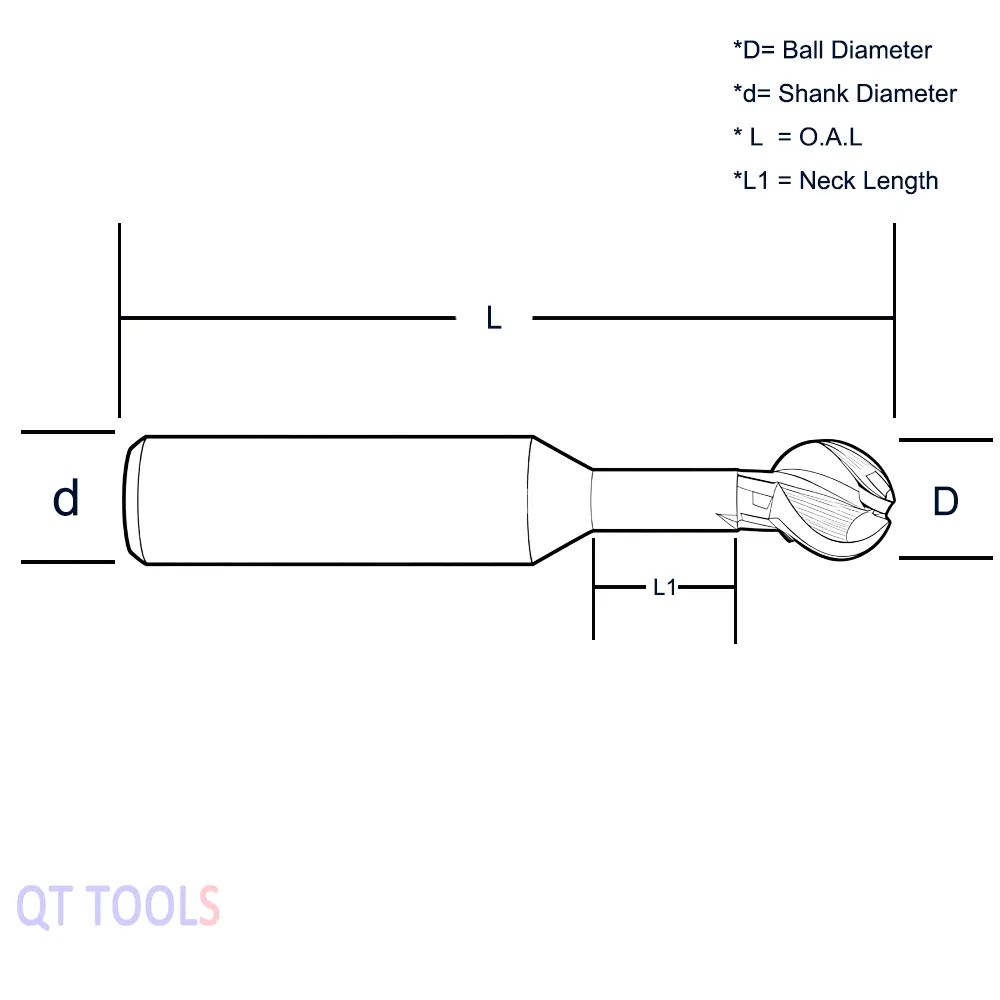

Radius (R) | Ball Dia (D) | Reach/Neck L (L1) | Shank Dia (d) | Overall Length (L) |
|---|---|---|---|---|
R0.5 | 1.0 mm | 3 mm | 4 mm | 50 mm |
R0.75 | 1.5 mm | 4 mm | 4 mm | 50 mm |
R1.0 | 2.0 mm | 4 mm | 4 mm | 50 mm |
R1.25 | 2.5 mm | 4 mm | 4 mm | 50 mm |
R1.5 | 3.0 mm | 4 mm | 4 mm | 50 mm |
R2.0 | 4.0 mm | 8 mm | 4 mm | 50 mm |
R3.0 | 6.0 mm | 10 mm | 6 mm | 50 mm |
R4.0 | 8.0 mm | 12 mm | 8 mm | 50 mm |
R5.0 | 10.0 mm | 15 mm | 10 mm | 60 mm |
R6.0 | 12.0 mm | 15 mm | 12 mm | 60 mm |
RPM/Feed
Note: The following data is for reference based on 6061 Aluminum.
Tool Radius | Spindle Speed (RPM) | Feed Rate (mm/min) | Milling Type |
|---|---|---|---|
R0.5 - R1.5 | 12,000 - 18,000 | 800 - 1,200 | Undercutting / Finishing |
R2.0 - R3.0 | 10,000 - 15,000 | 1,200 - 2,000 | Profiling / Deburring |
R4.0 - R6.0 | 8,000 - 12,000 | 1,500 - 2,500 | General Contouring |
Adjustment: Please reduce feed rate by 30-50% if machining at full depth or in deep cavities.
Promotion Policy
- Free sample: Free sample can be provided, if clients agree to pay for shipping cost.
- First order coupon: New clients can enjoy USD50 discount coupon for first order, if the total order amount is more than USD500.
- Big order discount: Clients can enjoy 2%~5% discount, if the total order amount is more than USD5000.
Clients Benefits
- Reduced Tooling Costs: Durable tungsten steel extends tool life, reducing the frequency of tool changes.
- Superior Surface Finish: Eliminates secondary hand-deburring or polishing steps.
- Fast Delivery: Standard sizes (R0.5-R6) are kept in stock for same-day or next-day shipping.
- Expert Support: Direct access to our engineering team for specialized machining parameters.
FAQ
Q: Can this lollipop cutter be used for steel?
A: This specific model is optimized for Aluminum and non-ferrous metals. For steel or stainless steel, please contact us for our coated AlTiN versions.
Q: Do you support custom reach lengths?
A: Yes, as a professional manufacturer, we can customize neck diameters and reach lengths to your specific drawings.
Q: What is the lead time for bulk orders?
A: Standard sizes are in stock. For large bulk orders or custom tools, lead time is typically 7-10 working days.
If you are looking for more high-precision milling solutions, please check out our full range of Solid Carbide End Mills to find the perfect tool for your next CNC project.
