2 Flute Solid Carbide Square End Mill for Steel HRC55 - AlTiN Coated

High-performance 2 flute solid carbide end mill for steel (HRC55). Features AlTiN coating and large chip gullets for efficient slotting and plunging. Sizes 1mm to 12mm.

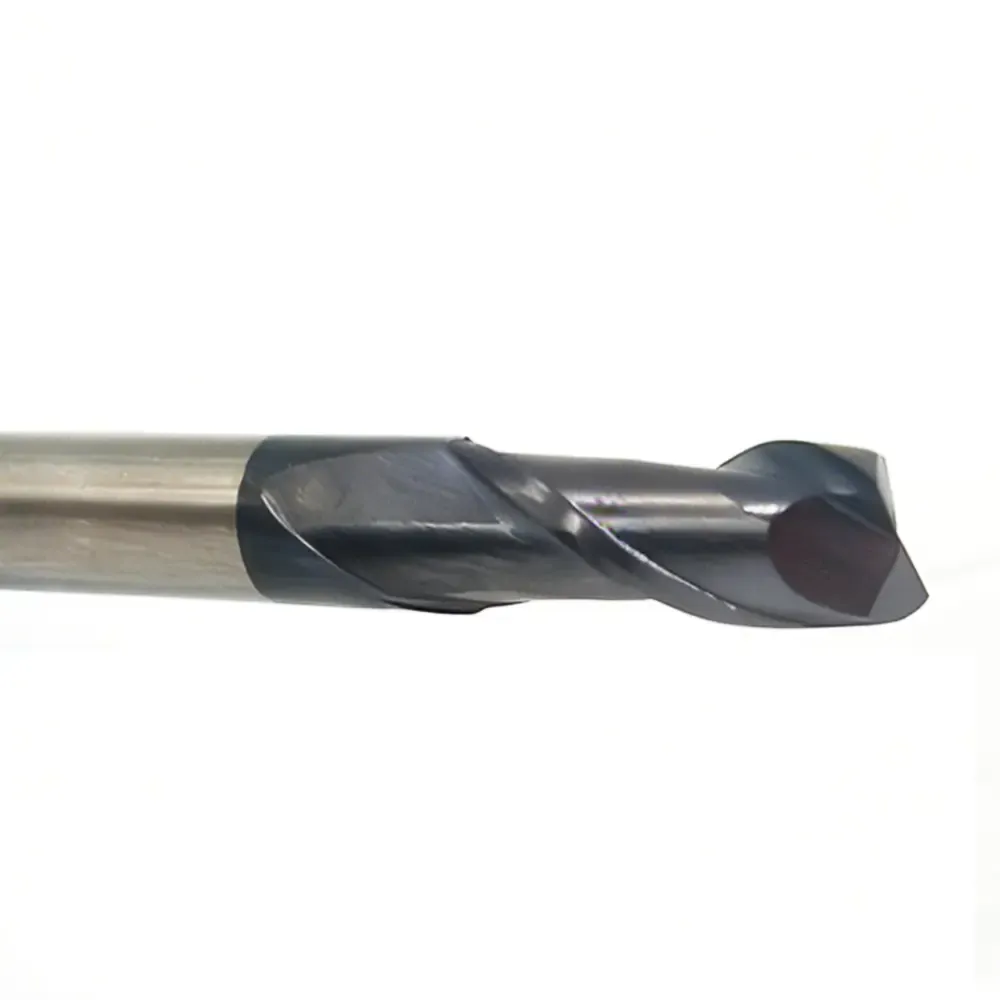

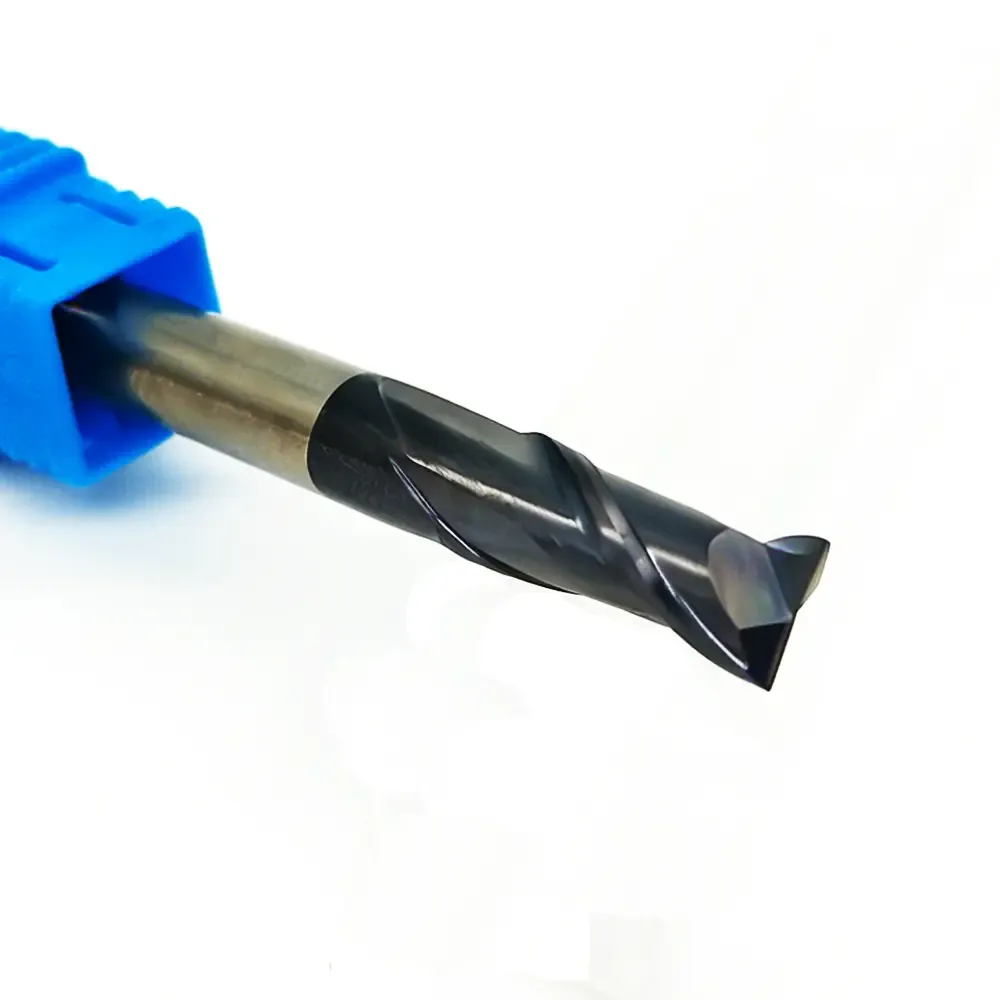

2 Flute Solid Carbide End Mill for Steel (HRC55)

Engineered for heavy slotting, plunging, and general milling, this 2-Flute Solid Carbide End Mill series is your go-to tool for machining Carbon Steel, Alloy Steel, and Pre-hardened Steel up to 55 HRC.
Featuring a premium AlTiN (Aluminum Titanium Nitride) coating, these cutters offer superior heat resistance and tool life compared to standard TiN coated tools. The 2-flute design provides ample space for chip evacuation, making it ideal for deep vertical cuts and slotting operations where chip clogging is a major concern.

Key Features & SEO Benefits

  • Optimized for Slotting: The large chip gullet design of the 2-flute geometry ensures rapid chip removal, preventing breakage during full-width slotting and plunging.
  • AlTiN Coating: Dark-grey/black high-performance coating withstands high cutting temperatures, extending tool life in hardened materials.
  • High Rigidity Design:
  • Sizes
    Ï•\phi

    1.0mm -
    Ï•\phi

    4.0mm feature a reinforced 4mm Shank, offering significantly better stability and reduced breakage compared to standard thin shanks.
  • Sizes
    Ï•\phi

    5.0mm -
    Ï•\phi

    12.0mm feature standard straight shanks for maximum compatibility.
  • Premium Substrate: Made from micro-grain tungsten carbide for excellent edge retention and wear resistance.

Applications

  • Slotting & Keyways: Efficiently cutting deep channels and keyways in steel parts.
  • Plunging (Drilling): Capable of vertical drilling (center cutting).
  • Roughing: Removing large amounts of material quickly before finishing.

Technical Specifications

Coating: AlTiN (For Steels & Cast Iron) Helix Angle: 35° Tolerance: h6 (Shank), 0/-0.02mm (Cutter Dia)
(Select your Cutter Diameter and Length of Cut below)
Cutter Diameter (
Ï•\phi

)
Shank Diameter (h6)
Length of Cut (L2)
Overall Length (L1)
1.0 mm
4.0 mm
2.0 / 3.0 mm
50 mm
1.5 mm
4.0 mm
3.0 / 4.5 mm
50 mm
2.0 mm
4.0 mm
4.0 / 6.0 mm
50 mm
2.5 mm
4.0 mm
5.0 / 7.5 mm
50 mm
3.0 mm
4.0 mm
6.0 / 9.0 mm
50 mm
4.0 mm
4.0 mm
8.0 / 10.0 / 12.0 mm
50 mm
5.0 mm
6.0 mm
15.0 mm
50 mm
6.0 mm
6.0 mm
12.0 / 18.0 mm
50 mm
8.0 mm
8.0 mm
20.0 mm
60 mm
10.0 mm
10.0 mm
25.0 / 30.0 mm
75 mm
12.0 mm
12.0 mm
30.0 mm
75 mm

Why Choose 2-Flute Over 4-Flute?

While 4-flute end mills provide a better surface finish, 2-flute end mills are essential when chip clearance is the priority. If you are cutting slots or machining soft/gummy steels where chips tend to pack, the 2-flute design allows chips to escape freely, preventing the tool from snapping.
Bulk pricing available for machine shops. Contact us for a quote!
